OnRobot

One Stop Shop for Collaborative Applications
OnRobot banner

One Stop Shop for Collaborative Applications

All the tools you need at one place to automate more.





Multiple Tools, Robots, and Applications-for Multiple Returns

Save cost and increase productivity with flexible automation tools.



One System,
Zero Complexity

Save time and grow your business fast with unified programming and easy deployment.



VIEW SPECIFICATIONS

RG2 RG2-FT RG6

RG2/RG2-FT/RG6

Flexible 2 Finger Robot Gripper With Wide Stroke

  • Flexible grippers can be used for a wide range of part sizes and shapes
  • Plug-and-produce design reduces deployment time from a day to an hour
  • Easy deployment with out-of-the box grippers reduces programming time by 70%



RG2-FT: Smart Robot Gripper with In-built Force/Torque & Proximity Sensor

  • Accurate sensing improves production quality by reducing defect rates as much as 60% in delicate pick-and-place processes
  • Easy-to-program sensing allows robot to act like an operator’s third arm, with human-like part hand-offs.
  • Ability to automate insertion tasks that weren’t previously possible, reducing operation costs by 40%

 Max Stroke: 110mm | 100mm | 150mm
Payload: 2kg, 4kg, 6kg

            VIEW SPECIFICATIONS

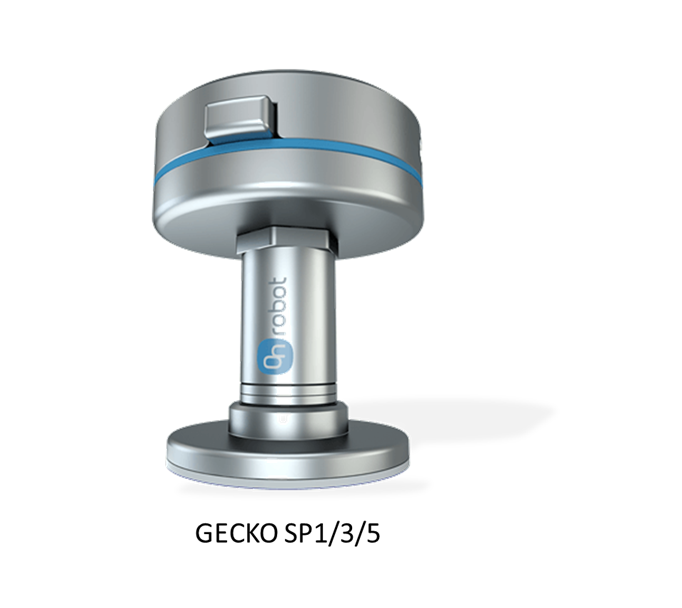

GECKO SP1/3/5

GECKO SP1/3/5

Compact No-Mark Gecko Single Pad Adhesive Gripper

  • Compact, lightweight Gecko Single Pad Gripper requires no cables, electricity, air, or programming for cost-effective, plug-and-play performance
  • Innovative adhesive gripper for flat, smooth, or perforated objects automates tasks that were previously not possible
  • No-mark gripping even for shiny surfaces - cleaning step is not required, saving time  and improving productivity

Payload: 1kg, 3kg, 5kg



VGP20

VIEW SPECIFICATIONS

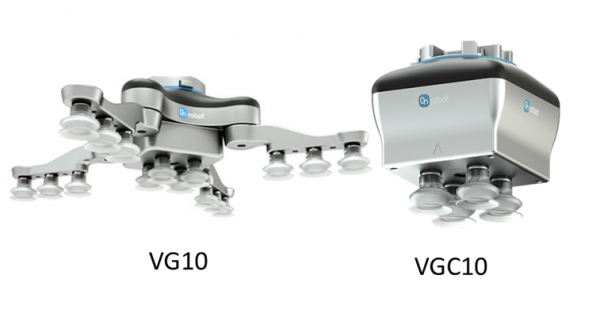

VG10 VGC10 VGC20

VG10/VGC10/VGP20

Flexible, Adjustable Electrical Vacuum Gripper

  • Out-of-the-box deployment—plug into the robot arm and configure the gripper to fit the product—provides fast productivity and ROI.
  • No external air supply required reduces maintenance costs and speeds deployment.
  • Dual gripping functionality enables shorter cycle time.

Payload: Up to 15kg

Powerful Electrical Vacuum Gripper Ideal for Cardboard Box Palletizing

  • Industry’s most powerful electric vacuum gripper saves up to 90% over pneumatic grippers
  • Ideal for palletizing boxes—including cost-saving, thinner cardboard—and handling irregular shapes and porous surfaces
  • Built-in intelligence and multichannel functionality ensure failsafe, flexible operation
  • Complete out-of-the-box vacuum gripper offers fast, easy deployment with any leading robot

Payload: Up to 20kg

 VIEW SPECIFICATIONS

Lift100 Pallet Station

LIFT100 and PALLETIZING STATION

High-Payload Robot Lift

  • Long-stroke robot elevator enables a wide range of future-proofed palletizing tasks for leading robot arms
  • High-payload elevator with minimal deflection ensures precise positioning of boxes – even at high speeds
  • Robust design for reliable, long product life under all typical manufacturing conditions
  • Integrated safety features with TÜV certified stop functionality to facilitate collaborative deployment
  • Out-of-the-box integration with OnRobot palletizing solution shortens deployment time

Pallet Station

  • Durable, floor-mounted pallet fixture that ensures consistent pallet positioning and can withstand hits from stackers and trucks
  • Includes a built-in sensor for detecting pallet presence
  • Off-the-shelf fixture saves significant engineering effort and shortens deployment time

VIEW SPECIFICATIONS

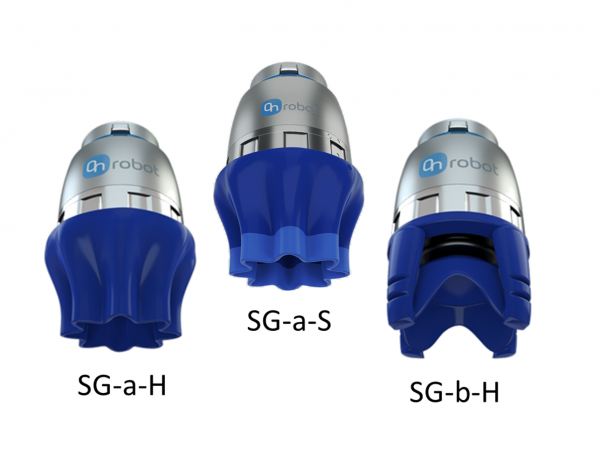

SG-a-H/ SG-a-S/ SG-b-H

SG-a-H/SG-a-S/SG-b-H

Soft Gripper - Flexible Food-Grade Robot Gripper

  • Explore new possibilities for food and beverage, cosmetics, and pharmaceuticals automation with certified food-grade soft gripper
  • Easily handle a wide array of irregular shapes and delicate objects with flexible silicon-molded gripper
  • Safely handle fragile and delicate objects for higher production quality and reduced waste
  • No external air supply means no dust, no noise, no complexity, and no additional costs

Grip Dimension: 11mm-118mm
Payload: 2.2 kg



VIEW SPECIFICATIONS

2FGP20 3FG15

2FGP20/3FG15

Versatile Electric Gripper for Palletizing

  • Highly versatile palletizing gripper with wide stroke and customizable arms handles heavy or open boxes, shelf-ready products and other containers that can’t be gripped with vacuum
  • Integrated vacuum gripper handles slip sheets without changing the gripper or requiring other handling method
  • Off-the-shelf gripper saves significant engineering effort and shortens deployment time
  • Electric gripper offers fast out-of-the-box deployment without the complexity and costs of external air supply



Flexible Large-Stroke 3-Stroke Gripper

  • Flexible production - large-stroke optimizes CNC lathe-tending for multiple part sizes with a single 3-finger gripper
  • Accurate centric positioning drives higher quality, consistency, and output with minimal programming
  • Strong, stable grip with 3 contact points makes gripper fast and easy to redeploy for multiple processes
  • Accomplish more with customizable fingertips to flexibly grip a wide range of part sizes and shapes



VIEW SPECIFICATIONS

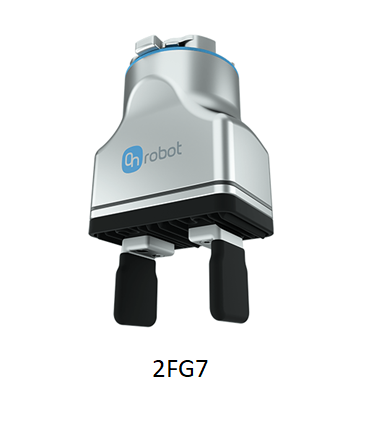

2FG7

2FG7 Finger Gripper

No-Fuss Parallel Gripper For Tight Spaces And Demanding Payloads

  • Complete, easy-to-program, collaborative parallel gripper gets to work fast in a wide range of applications
  • Strong parallel gripper is easy to deploy in tight spaces and handles demanding payload requirements
  • Get fast ROI with a single flexible, intelligent, and precise gripper that can be easily customized and adapted for many tasks
  • Ready for use almost anywhere, with IP67 rating for harsh environments and ISO Class 5 certification for cleanroom use

External Grip Range: Up to 73mm
Payload: 11kg



VIEW SPECIFICATIONS

MG10

MG10

Versatile Electric Magnetic Gripper for Safe and Precise Collaborative Applications

  • Electric magnetic gripper offers fast out-of-the-box deployment without the complexity and costs of external air supply
  • Built-in intelligence with easily adjustable force and part detection ensures reliable handling of a wide range of part sizes and weights
  • Fast, compact and customizable gripper to fit all your application needs
  • Ensure safe and reliable operation by maintaining grip even after power loss or emergency stop

Payload: Up to 10kg
Pulling Force: 300N

VIEW SPECIFICATIONS

OnRobot Eyes

ONROBOT EYES

Flexible, Adaptable 2.5D Vision System

  • Quickly and easily add vision to robotic applications with one-picture calibration, fast programming and seamless gripper integration
  • Affordable, efficient 2.5D vision offers depth perception for varying heights or stacked objects
  • Flexible, adaptable vision system with on-robot or external mounting is ideal for almost any collaborative application
  • Easily sort, pick and place unstructured applications with high reliability using any robot arm
  • One-shot detection for multiple objects minimizes cycle time
  • Inspect objects using color and contour detection—with or without a robot, and ensure consistent quality
  • Automatic landmark enables dynamic working environments and mobile robot setups





VIEW SPECIFICATIONS

ONROBOT SCREWDRIVER

SCREW DRIVER WITH SCREW FEEDER

Multifunctional Robot Screw Driver with Screw Feeder

  • Easy out-of-the-box setup, programming, and deployment on any leading robot
  • Highly versatile and flexible, with fast changeovers for a wide range of screw sizes and lengths
  • Precise torque control and intelligent error detection ensure quality and consistency
  • Embedded axis motion control simplifies programming, speeds setup, and improves quality

Torque Range: 0.15 to 5Nm

VIEW SPECIFICATIONS

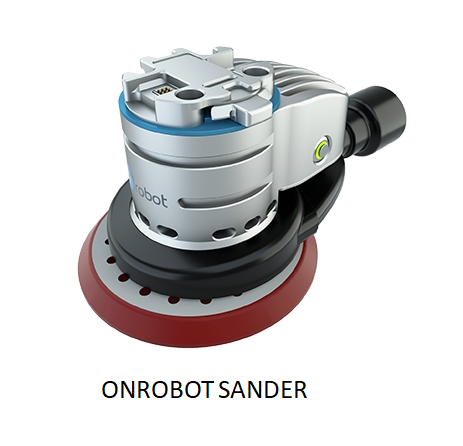

ONROBOT SANDER

ONROBOT SANDER

Fast, Easy And Flexible Automated Material Removal

  • Easy to deploy and program right out of the box for sanding, buffing and polishing
  • Complete package includes everything needed for immediate use on a range of parts and materials
  • Fast, automated sanding Grit Changer reduces downtime and labor
  • Electric tool (no compressed air) boosts efficiency and control
Sanding Power: 150W



 VIEW SPECIFICATIONS

Hex 6 Axis Force/Torque Sensors

HEX 6 AXIS FORCE/TORQUE SENSORS

Giving The Sense Of Touch To Your Robot

  • Flexible sensor extends automation possibilities to processes that weren’t previously possible
  • High-accuracy sensor technology provides 95% better quality in insertion and assembly tasks.
  • Easy programming gets even complex polishing tasks up and running in less than a day





VIEW SPECIFICATIONS

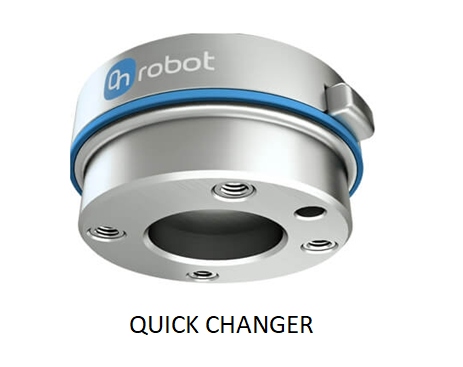

QUICK CHANGER

QUICK CHANGER

Fast Tool Changing Within 5 Seconds

  • Easy and fast tool changing in less than 5 seconds
  • Fast re-deployment, no screwing, more up-time
  • Integrated in all OnRobot products
Rated Payload: 20kg



VIEW SPECIFICATIONS

DUAL QUICK CHANGER

DUAL QUICK CHANGER

Dual Gripping, More Power For Twice The Work

  • Dual gripper speeds cycle time and can improve productivity by 50% or more
  • Increased productivity offers faster payback, with ROI in as little as 3 months
  • Increased up-time in CNC machine tending

 Rated Payload: 20kg





D:PLOY

D:PLOY is industry’s first automated platform for building, running, monitoring, and re-deploying collaborative applications

It automates the process of getting a robotic application up and running, allowing deployment directly on the manufacturing floor, with zero programming and zero simulations. With D:PLOY, complete applications can be deployed in just a few hours.

  • Automate faster, easier, and without risk
  • Up to 90% deployment time savings for faster ROI
  • Solve labor shortage problems
  • Improve productivity and stay ahead of competition
  • Relieve operators from unwanted tasks
  • Take control of your automation journey

 D:PLOY
